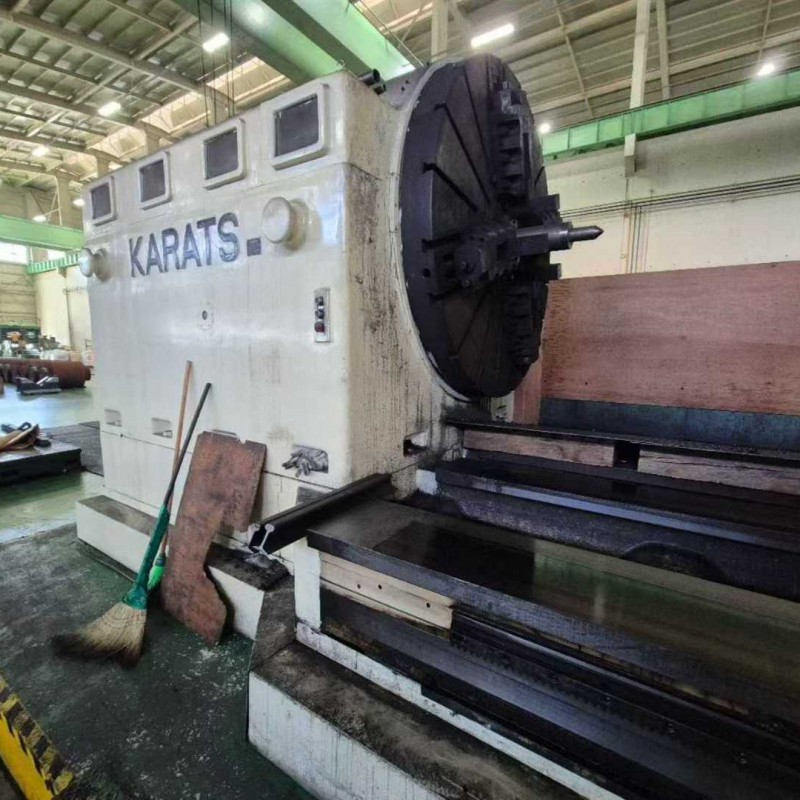

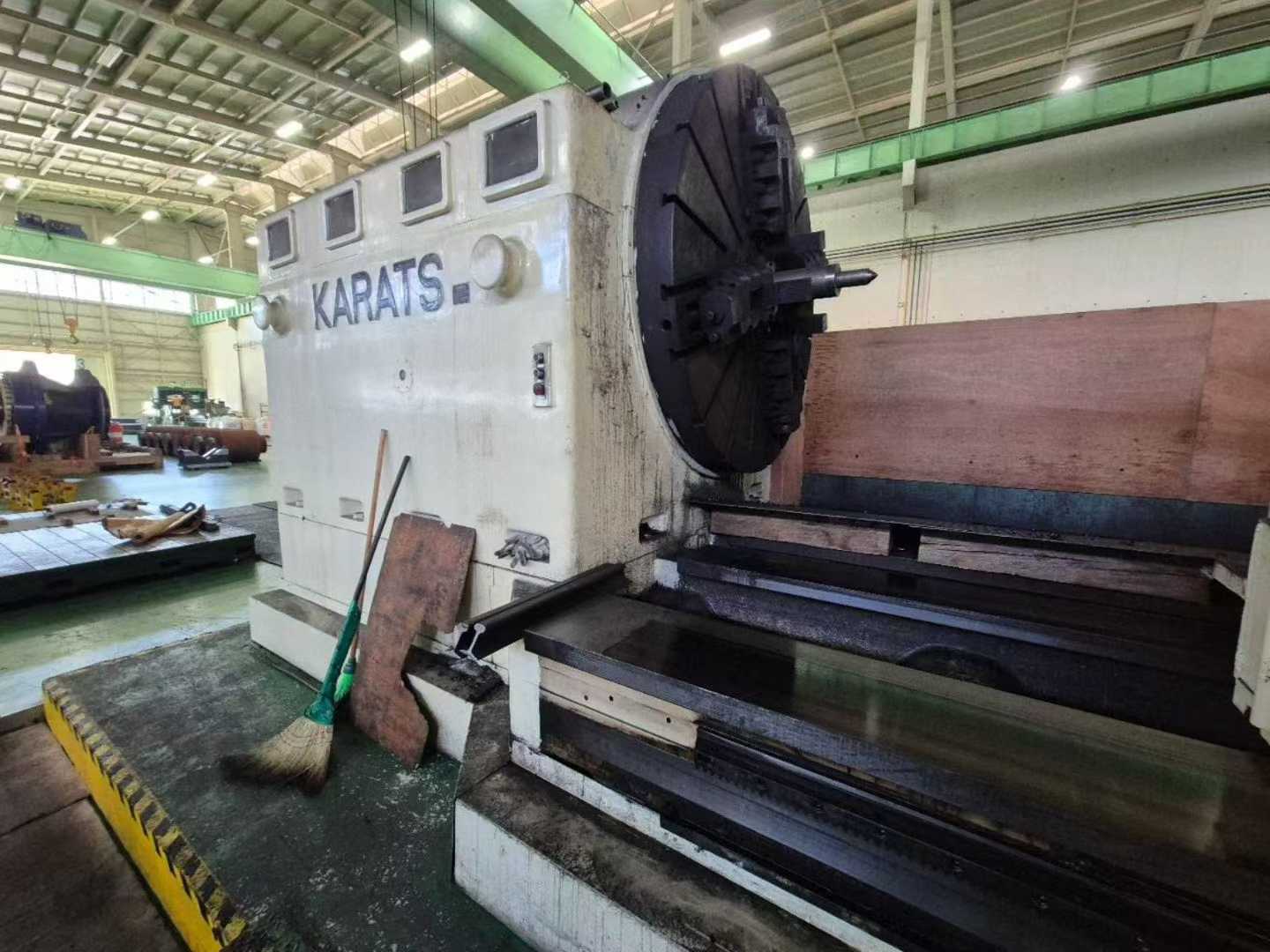

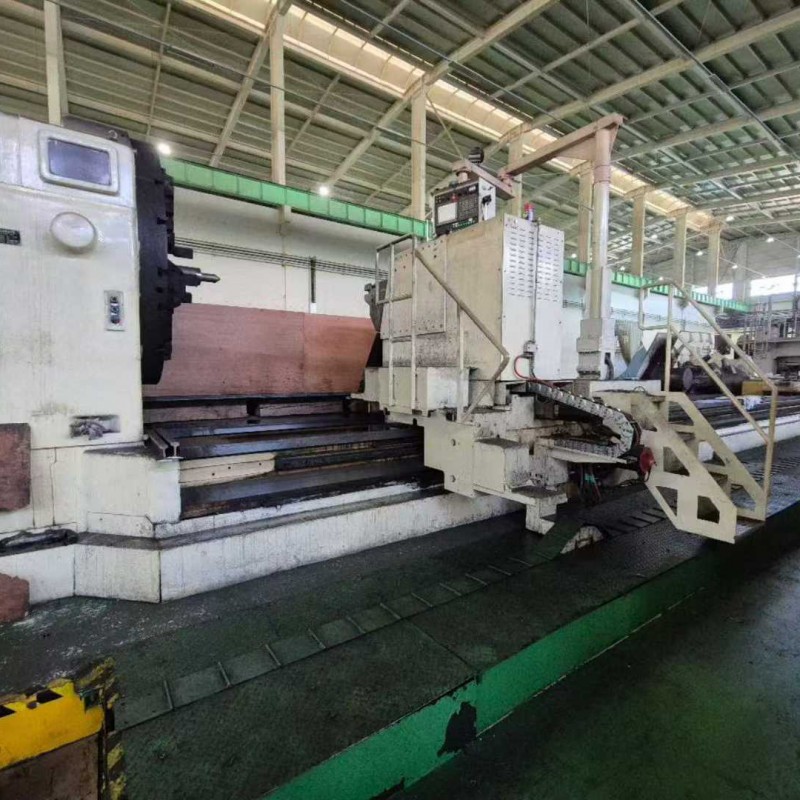

Downing CNC sleeping car 2. 6 / 12 meters Model L-20H 2600X12000 Central distance of 1,320 mm Reverse pendulum 2,600 mm 2400 mm swing across the tool holder Chuck diameter 2000 mm Spindle (front) 420x600L Spindle (rear) 330x450 Maximum gripping diameter of workpiece for panel 1640 mm Minimum grip diameter (for assisted clippers) 360 mm Centre spacing 12,000 mm The total length of the bed is 16,800 mm. The bed size is 2,550 mm. The height of the bed is 630 mm. The maximum support weight of the two centres is 700,000 kg Maximum spindle rotation force 15.000 Kgm Spindle speed (1) 0.8 ~ 24 rpm (2) 2 to 6 rpm / min (3) 5 ~ 15 rpm / min (4) 123 ~ 37 rpm / min Return and / or round tables with a handling device The inflow to the restoration (vertical) Intake 0.32 to 8 millimeters per minute Feed 8 ~ 200 mm / min
