A 2-meter original CNC lathe! Collet base 1.9 meters! Processing height 1.6 meters! Square slide head enlarged! Independent hydraulic system! Two units of the same model.

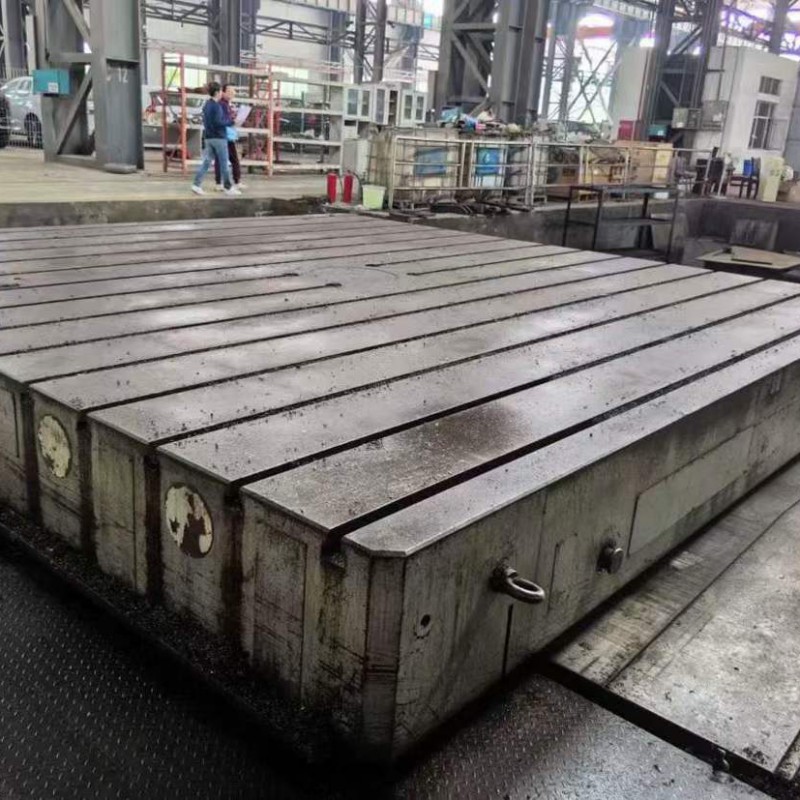

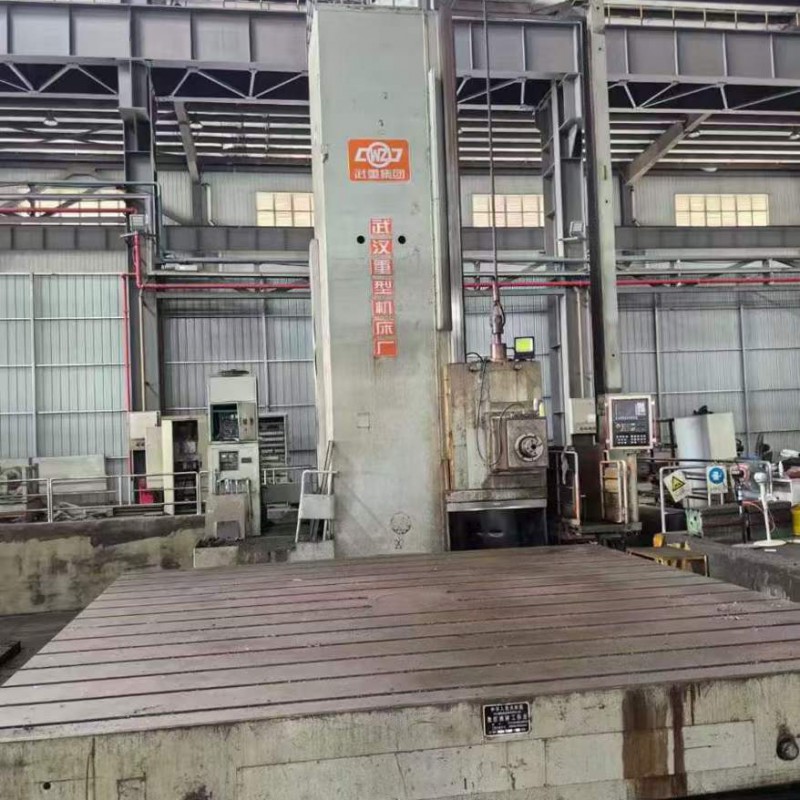

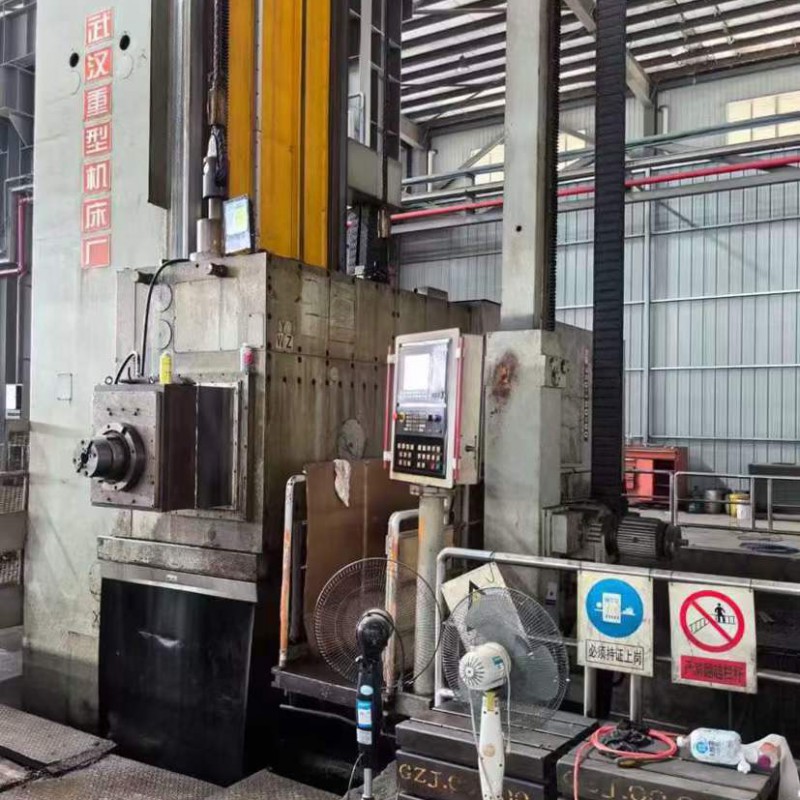

T6920D/H45 Qi Er floor-type boring and milling machine. Height: 4.5 meters, Length: 10 meters. Rotate 3 meters × 3 meters / 40 tons. Flat plate 1.4 meters × 3.8 meters × 4 pieces. One angle milling head, one flat rotary plate.

Czech Dawes CNC tabletop boring and milling center. Model: WHQ15CNC, spindle 150, X-axis 5 meters. Y-axis: 2.5 meters, column front-to-back movement on Z-axis: 3.2 meters. The boring bar W axis extends 900 mm, and the worktable is 1800 × 2500 mm. Load capacity of 25 tons, 60 tool magazines, FANUC 31i system. Full closed-loop Heidenhain grating scale, manufactured in 2022.

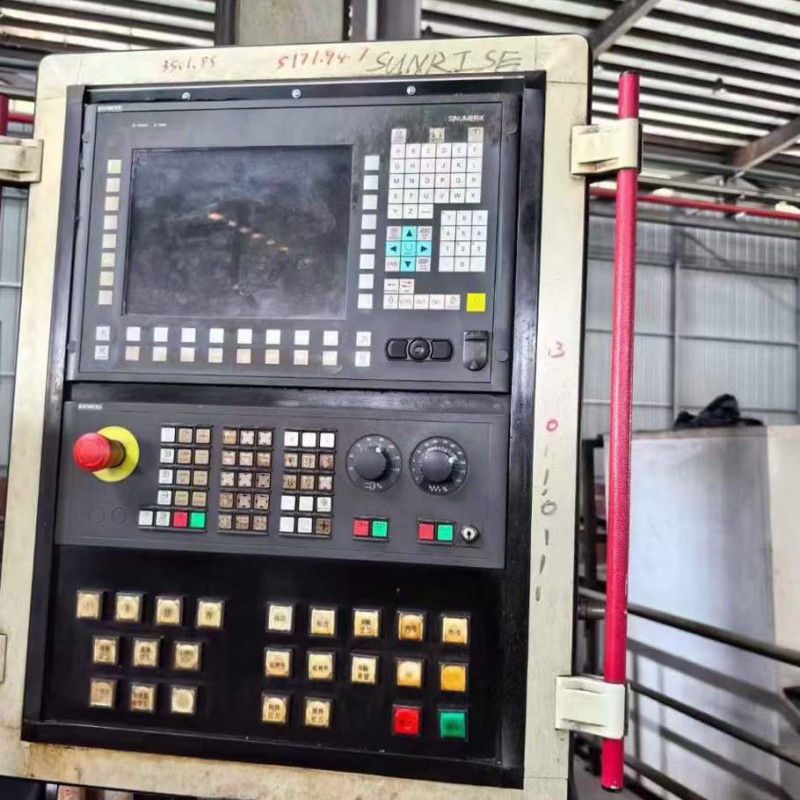

8x16 MIDS Salman seven axis five axis linkage gantry turning and milling compound, Total length 25 meters, 8,400 dragon doors wide, car milling workstation Longmen processing center car and mill composite CNC standing vehicles CNC dragon gate milling machine; Ships Propeller milling machine, 7 axis, 5 axis interlocking, Model VC9200 / 500MCG Siemens 840 D Digital Control System.                  Y-travel tool holder travel + 6000 / - 4000 mm X-travel gantry travel 16000 mm Z-travel square ram stroke 1500 mm Disc diameter 5000 mm / Pay table 8 meters! Turning diameter 8400 mm Turning height 6700 / 9100 mm Workpiece weight 100 / 60 t Disc speed 50 U / min 360 ° Milling shaft power 40 kW Milling shaft speed 10-2400 U / min Boring shaft diameter 170 mm Square ram size 480 x 520 mm W-axis beam stroke 8 x 200 mm Digital Control System Sinumerik 840 D Gantry width 8400 mm Maximum turning diameter 9200 mm Table height 7000 mm Height 10000 mm on the working platform Tool taper SK 50 shank
